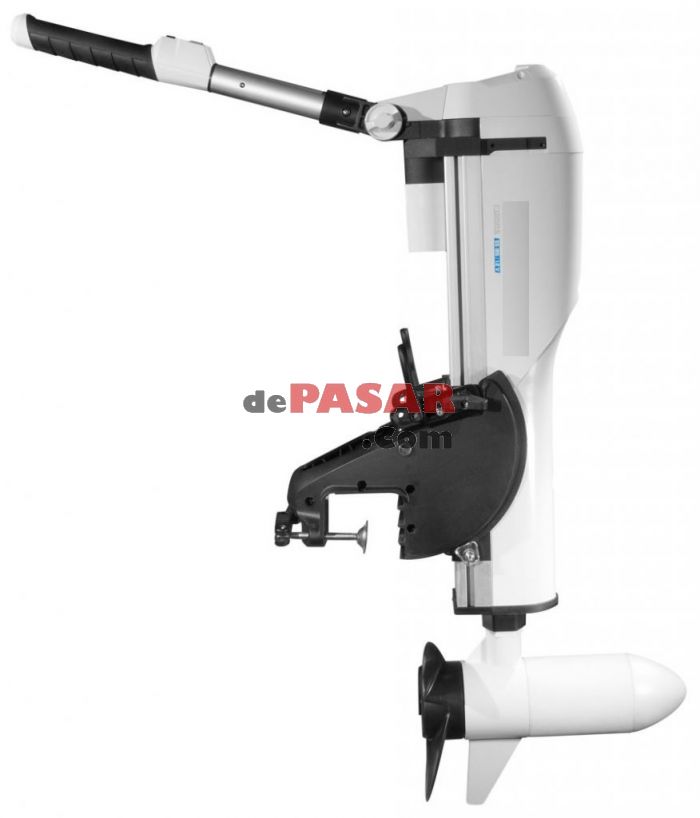

Maritime 1EM02, outboard engine with the power of 1 horsepower (HP / PK). The weight of the machine is around 14.3 kg so it is portable and easy to move. 12 Volt electrical voltage.
This machine is perfect for those of you who are often in shallow and deep waters, you can adjust the height of the shaft of the engine shaft ( shaft ) to facilitate the navigation of these boats and inflatable boats. In shallow water and it is not possible to start the engine. You can use the oars, and when you are in slightly deep waters you can lower them according to your needs. The pole can be set easily up to 265mm.
There are 5 forward speed settings, and 3 reverse speed settings. The control stick can be extended to 30 cm making it easier to control the movement of the boat engine. The bracket can be tilted up to 10 tilt positions to 90 ° position, making this electric mini outboard light and the smallest in its class
Can use :
- Battery 100-180Ampere Battery - when using 2 pieces of Battery AH Deep 105 Cycle can be used up to 1.5 hours full speed.
- Solar Panel
Suitable for
- Inflatable boat
- Small boat
- Sampan
- Wooden Boat / Aluminum
| Full throttle rpm range | 1200 r/m |
|---|---|
| Jenis Bahan Bakar | Listrik |
| Shaft Length | 36inch / 914mm |
| Tenaga | 1 hp / pk |
| Engine Type | DC Motor |
| Daya | Rated 540W Max 660 Watt |
| Ampere | Rated 45 Max 55A |
| Max Prop Shaft Output | 55 LBS |
| Fuel Consumption | Voltage DC 12V |
| Max Boat Length | 5.5 metre |
| Maximum load | 400 kg |
| Size | Product = 31.5 x 16 x 130 Cm Packing = 41.5 x 21 x 140 cm (Length x Wide x Height ) |
| Gear Shift | Forward - Netral - Reverse |
| Starting System | Electric |
| Propeller Material | Stainless Steel |
| Trim & Tilt Method | Manual Tilt |
| Operation Method | Tiller handle |
| Dry Weight | 13.8 kg |
