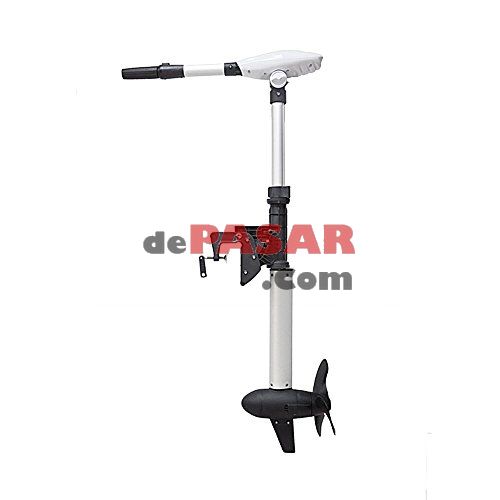

Maritime 2EM01, outboard engine with the power of 2 horsepower (HP / PK). The machine weighs around 8.3 kg so it is portable and easy to move. 24-volt power supply voltage. It takes 2 pieces of 12V battery for operation.
There are 5 forward speed settings, and 3 reverse speed settings. The control stick can be extended up to 40 cm making it easier to control the movement of the boat engine. The bracket can be tilted up to 10 tilt positions to 90 ° position, making this electric mini outboard light and the smallest in its class
Can use :
- Battery 100-180Ampere Battery - when using 2 pieces of Battery AH Deep 105 Cycle can be used up to 1.5 hours full speed.
- Solar Panel
Suitable for
- Inflatable boat
- Small boat
- Sampan
- Wooden Boat / Aluminum
| Full throttle rpm range | 630 r/m |
|---|---|
| Jenis Bahan Bakar | Listrik |
| Shaft Length | 38.5inch / 980mm |
| Tenaga | 2 hp / pk |
| Engine Type | DC Motor |
| Daya | Rated 1120W Max 1200W |
| Ampere | Rated 47A max 50A |
| Max Prop Shaft Output | 101 lbs |
| Fuel Consumption | Voltage DC 24 |
| Max Boat Length | 6.5 metre |
| Maximum load | 700 kg |
| Size | Product = 31.5 x 16 x 130 Cm Packing = 41.5 x 21 x 140 cm (Length x Wide x Height ) |
| Gear Shift | Forward - Netral - Reverse |
| Starting System | Electric |
| Propeller Material | Aluminum |
| Trim & Tilt Method | Manual Tilt |
| Operation Method | Tiller handle |
| Dry Weight | 8.3 kg |
