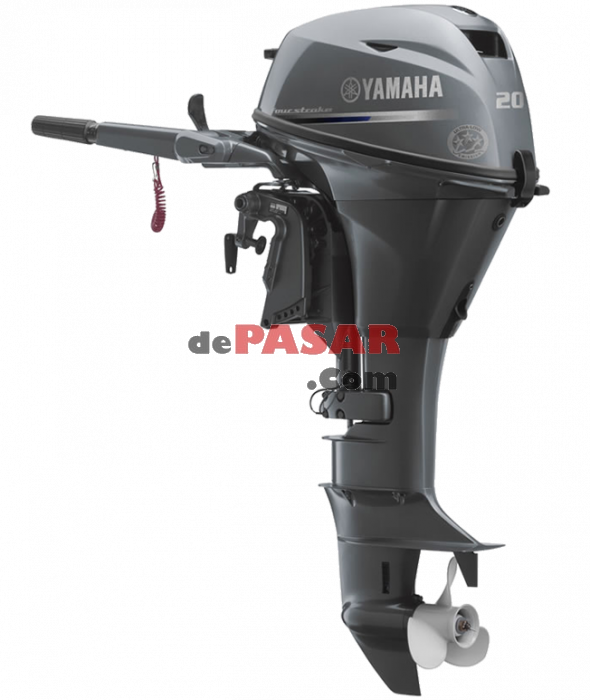

Yamaha 4 stroke engine or outboard motor - F20CMHL
Suitable for use:
- The sea
- Lake
- Reservoir
- River
- Swamp
The understanding of the outboard engine itself is a machine using a 4-stroke or 2-stroke system that functions to move the boat. Outboard motors for propulsion systems for ships, which consist of standalone units which include engines, gearboxes and propellers or drive jets, which are designed to be affixed to parts of the boat (boat transom).
After providing thrust / propulsion, this outboard engine also has a steering system to control the direction of thrust. Compared with deep-engined ships, outboard motors and easily released from the ship for storage or repair.
The advantages of Yamaha 4 stroke engine - F20CMHL
- Environmentally friendly.
- Same with the 2 stroke model.
- A thick, easy-to-hold grip on the front of the engine.
- Easy to carry, install, and remove.
Fuel/Induction System | 1 Carburetor |
---|---|
Full throttle rpm range | 5000 ~ 6000 r/m |
Jenis Bahan Bakar | Bensin / Gasoline |
Lubrication | Wet Sump |
Ignition System | CDI |
Tenaga | 20 hp / pk |
Displacement | 362 cc |
Engine Type | 2 Cylinder - 4 Tak SOHC |
Compression Ratio | 9.3 |
Fuel Consumption | 6.9 litres pr hour |
Gear Shift | Forward - Netral - Reverse |
Starting System | Manual Choke |
Propeller Pitch Size | 10" |
Propeller Material | Aluminum |
Gear Ratio | 2.08 (27:13) |
Trim & Tilt Method | Manual Tilt |
Operation Method | Tiller handle |
Fuel Tank | External Fuel Tank |
Dry Weight | 55 kg |
